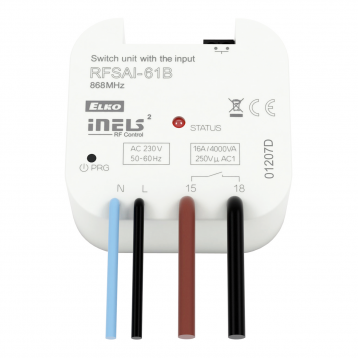

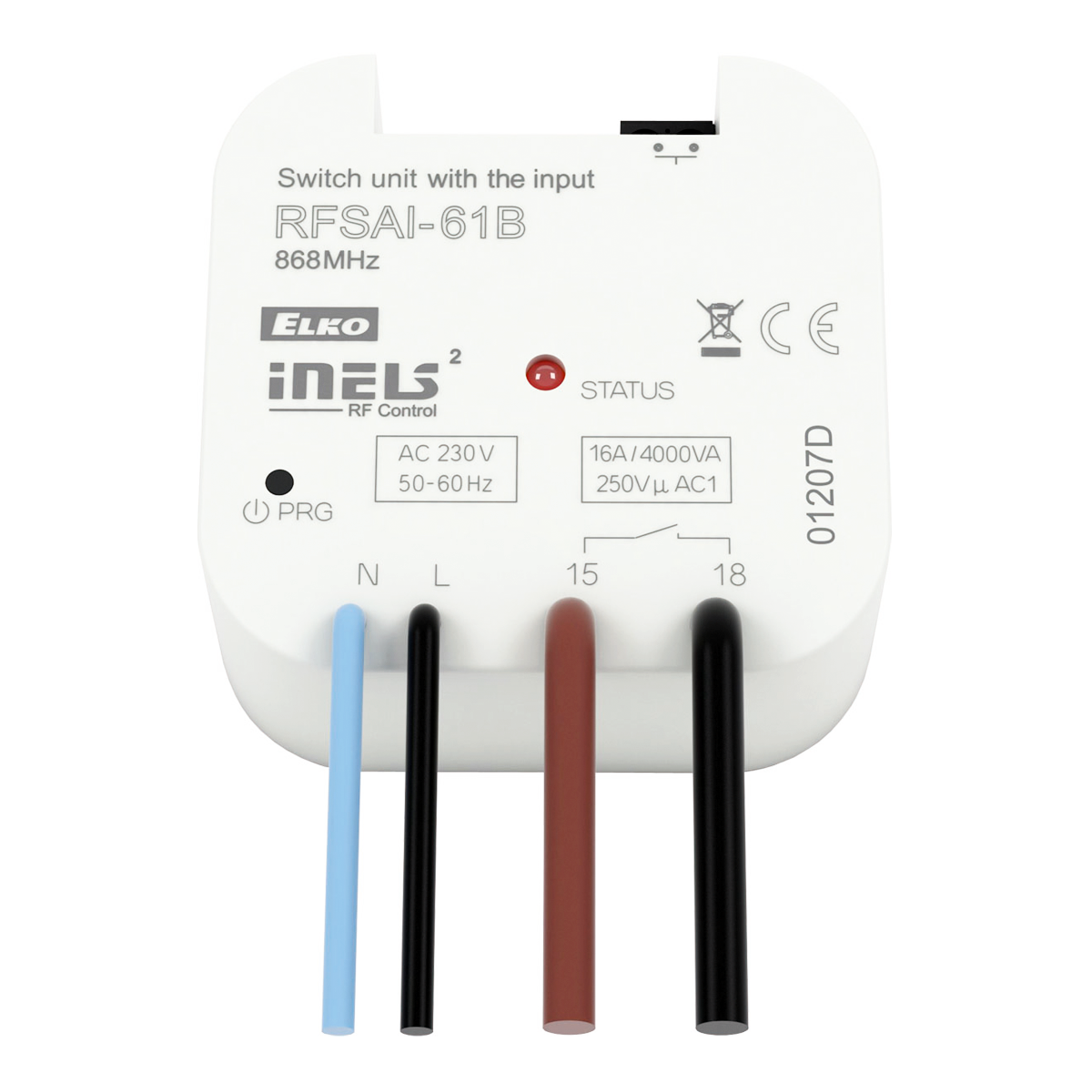

Wireless switch unit with the input (for a pushbutton) - RFSAI-61B

END OF PRODUCTION

EAN: 8595188145893 (230V) | Code: 4997 (230V)

DESCRIPTION

  • The switching unit with 1 output channel is used for controlling appliances and lights. It is possible to connect the existing button to the internal terminal in the wiring.
  • They can be combined with detectors, controllers, iNELS RF Control or system components.
  • The BOX design lets you mount it right in an installation box, a ceiling or controlled appliance cover.
  • It enables connection of the switched load up to 16 A (4 000 W).
  • Function: button, impulse relay and time function of delayed start or return with time setting range of 2 s-60min.
  • External button is programmed as a wireless button.
  • Input is not galvanic isolated.
  • The switching unit may be controlled by up to 25 channels (1 channel represents 1 button on the controller).
  • The programming button on the unit is also used for manual control of the output.
  • Memory status can be pre-set in the event of a power failure.
  • For components it is possible to set the repeater function via the RFAF / USB service device.
  • Range up to 200 m (in open space), if the signal is insuffi cient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that support this feature.
  • Communication frequency with bidirectional protocol iNELS RF Control2 (RFIO2 ).

TECHNICAL PARAMETERS

  • Power supply AC 230 V, AC 120 V or AC/DC 12 – 24 V.
  • Number of contacts: 1x switching 12 A (AgSnO2)
  • RF command from the detector: 866 MHz, 868 MHz, 916 MHz
  • Manual control: button PROG (ON/OFF)
  • Range in open space: up to 160 m
  • Working position: any
  • Protection: IP30
  • Dimensions: 49 x 49 x 21 mm
  • Weight: 50g
