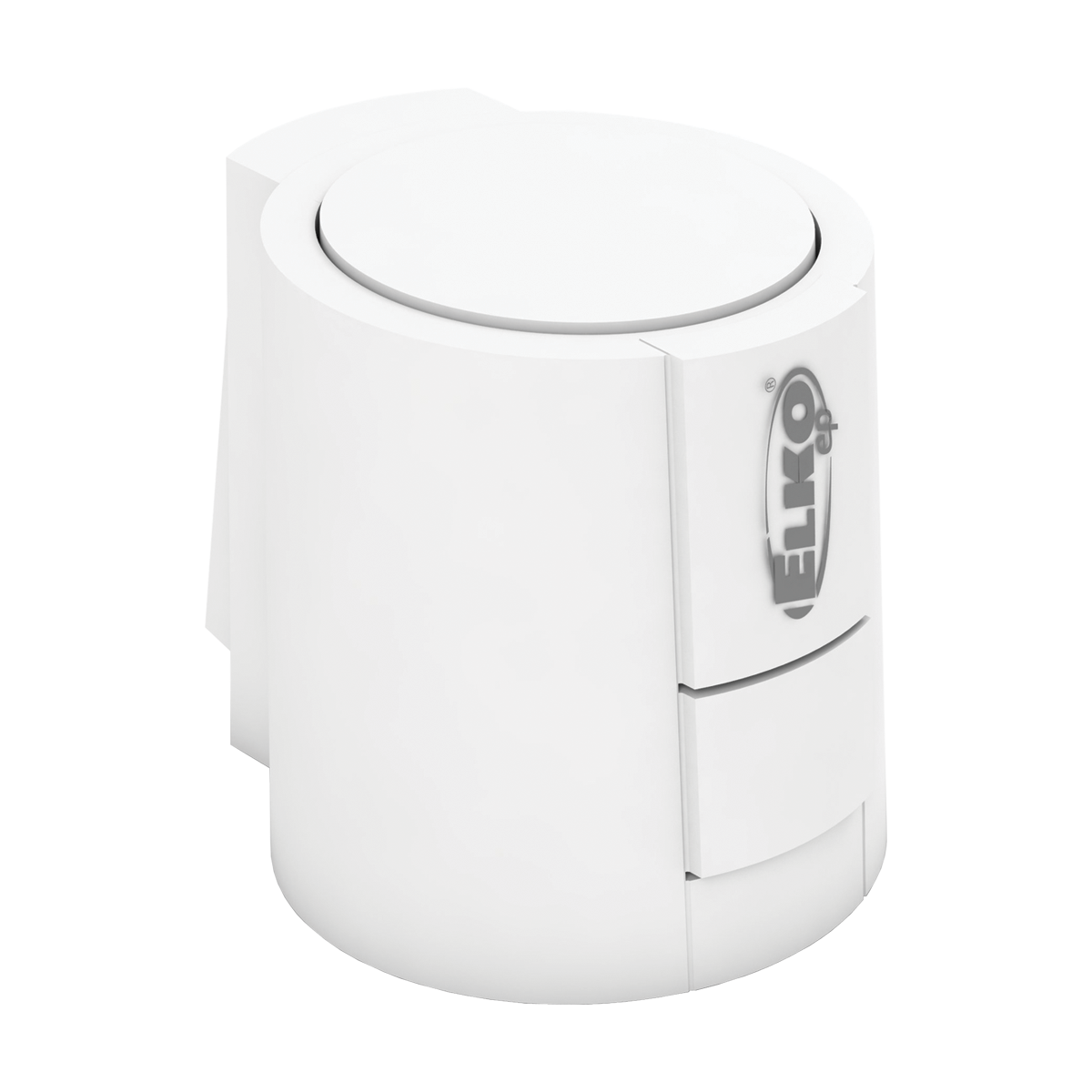

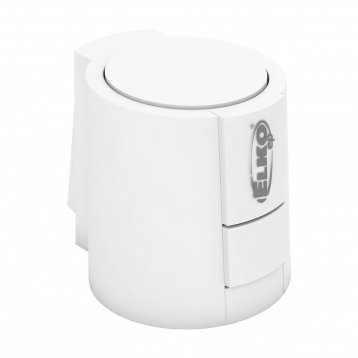

Thermodrive TELVA

END OF PRODUCTION

Description

  • The thermoregulation drive TELVA is used to control underfl oor and radiator hot-water heating.
  • It is known for its quiet operation. It has a built-in valve position indicator.
  • By mounting using the VA valve adapter, the thermo-regulation drive TELVA is applicable for a wide range of thermostatic valves available on the market.
  • Design:
    - without voltage open (NO)
    - without voltage closed (NC)
  • Type of use:
    Underfl oor heating - wireless controller RFTC-50/G measures the room temperature, and based on the set program, sends a command to the switching unit RFSA-66M to open/close the thermo-regulation drive TELVA at the distribution.

Technical parameters

  • Operating voltage:  230 V, 50 / 60 Hz  (Telva 230V), 24 V, 50 / 60 Hz  (Telva 24V)
  • Power input:  cca 3 min.
  • Settings: 4 mm
  • Stopping force: 100 N ±5 %
  • Cable length: 1 m
  • Connecting wire:  2 x 0.75 mm2
  • Dimensions h/w/d: 55+5 x 44 x 61 mm
