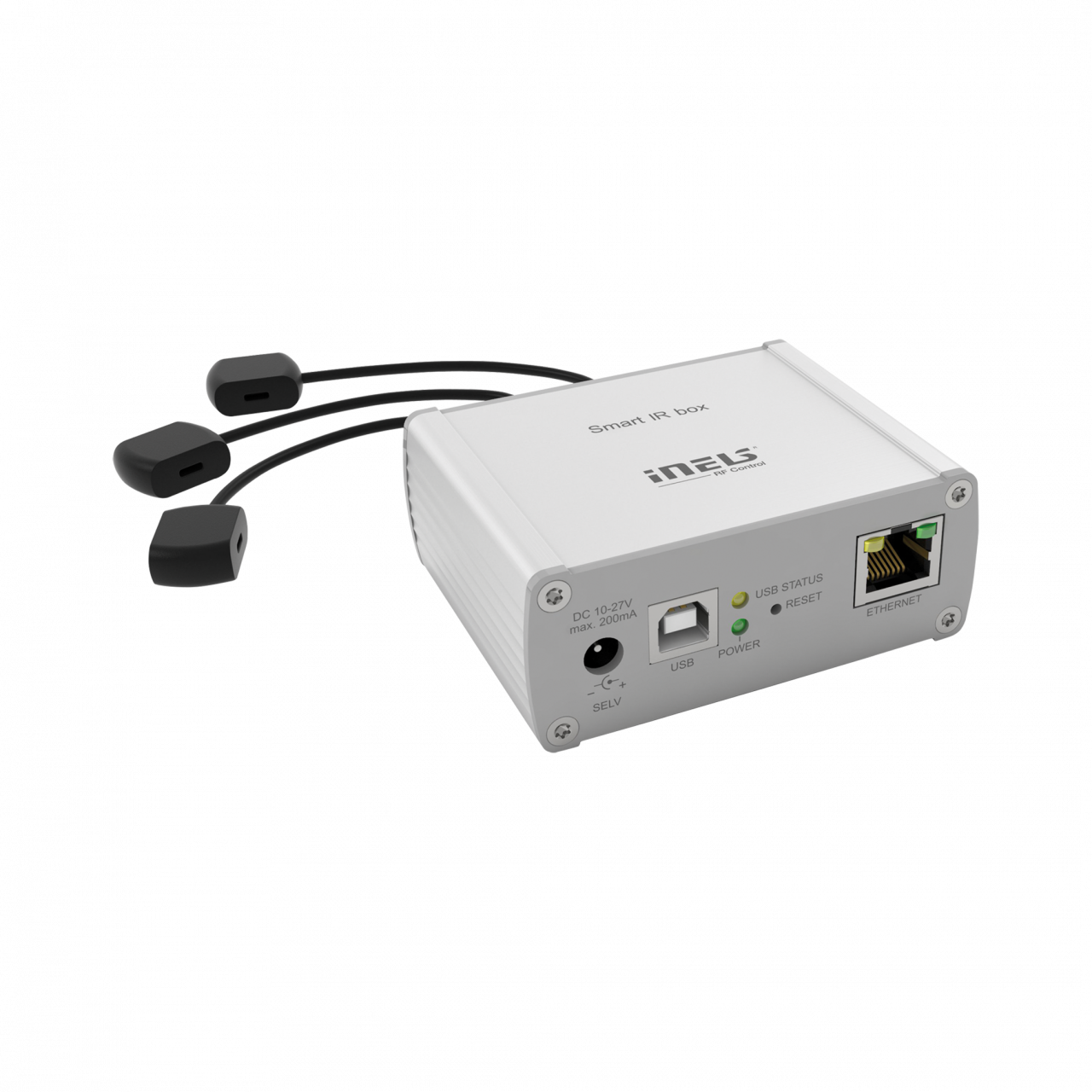

Ethernet-IR transmitter
eLAN-IR-003

EAN: 8595188132831 | Code: 3283

DESCRIPTION

  •  The applications iHC-MAIR and iHC-MIIR provide universal control for all Audio/Video devices (including air conditioning).
  •  The application is connected via a smartphone connected to the smart IR box eLAN-IR-003, which communicates with audio/video devices
  •  via IR sensor.
  •  The intuitive application environment makes it simple for anyone to control.
  •  What can you control? Home theater, TV, DVD or Blue Ray player, amplifier, set-top box, satellite receiver, air-conditioning, projector and more.
  •  It can control up to 100 arbitrary commands with various controllers that you normally have at home.
  •  With the scenes function you can perform multiple functions simultaneously with a single click command (e.g. you are going to bed you and switch off all AV appliances in the entire home with a single press).
  •  It is possible to integrate into a single application an unlimited number of IR boxes, meaning that in one application, you have control over the living room, children‘s rooms, etc.
  •  It is also possible to control remotely from anywhere using a Wi-Fi network (e.g. from work or vacation).
  •  Thanks to auto-IP acquisition from the DHCP server, you need not set up a network (if you have no set fixed IP address).
  •  You can connect three sensors to the smart IR box eLAN-IR-003 for three directions of control.

TECHNICAL PARAMETERS

  • Sensor IR: Infrared sensor for learning IR codes
  • Output indication: 3x LED green status IR1-IR3
  • Communication Interface: 10/100 Mbps (RJ45)
  • Voltage supply / jm. current: 10-27 V DC / 200 mA (safe low voltage)
  • Dimensions: 90 x 52 x 65 mm
  • Weight: 136 g

Links to download the app:
Pro iOS                           Pro Android
