RFSET-SMK-F1

END OF PRODUCTION

DESCRIPTION

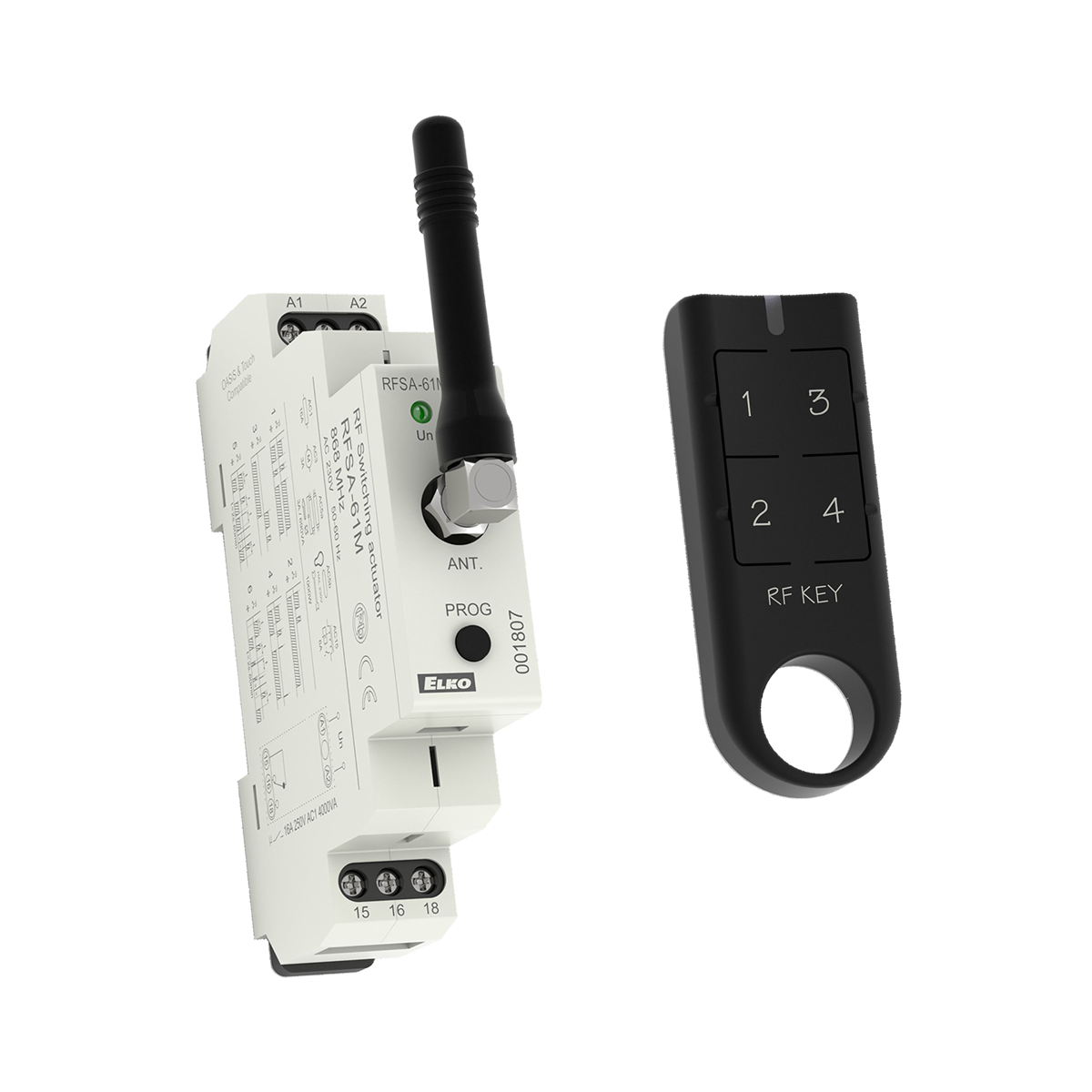

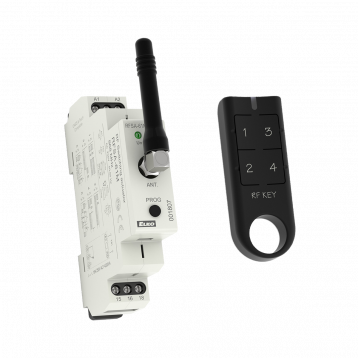

  • A switching unit with 1 output channel is used to control appliances, sockets, lights.
  • 6 functions: button, ON, OFF, change of state, time switch 1, time switch 2.
  • The switching element is supplied with an internal antenna, the AN-E external antenna is supplied to order.
  • RF Key is s portable transmitter used to control RF Control units.
  • It has a wide variety of use thanks to its small size; you can have it always on you, leave it in your car or wear it as keyholder.

TECHNICAL PARAMETERS

  • Power voltage of switching unit RFSA-61M AC 110 – 230V, in 1-MODULE housing, mounting on DIN rail.
  • Battery power RK-KEY (3V/CR2032) battery life is about 5 years (included in the package).
  • Can be remotely controlled from within 160m (free space).
  • Communication frequency (868MHz, 866MHz, 916MHz, 922MHz) with bidirectional protocol RFIO or RFIO2.
  • RFIO2 is an innovative iNELS RF Control wireless communication protocol, which brings you greater stability and eliminates signal collision between individual components.
